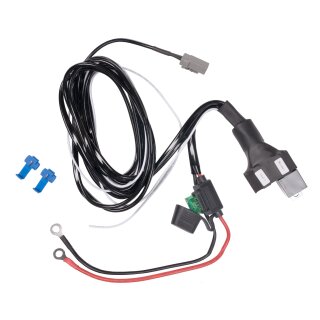

Kabelbaum Purelux Dualrelay 12V, DTP, 1 Ausgang (DTP)

Kabelbaum Purelux Dualrelay 12V, DTP, 1 Ausgang (DTP)

SKU: HS18701
Category: Kabel & Zubehör

Easy solution for installing 1-4 additional lights in can-bus controlled vehicles. The relay harness has an integrated ready-made slot for an XBB relay, which also allows the connection of more powerful additional lights without having to make any changes to the harness. Suitable for 12V power, max. current capacity 280W (1 output), 480W (2 outputs), 720W (3 outputs), 800W (4 outputs).

34,90 €

incl. 19% VAT , plus

Must be ordered. Ready for shipment in 7 days after order.
Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)

Description

NOTE! The Purelux relay wiring harness is also suitable for connecting additional lights other than Purelux. Our range also includes wiring harnesses with other connectors, and of course you can remove the connector from the wiring harness and connect the light directly to the wires. The Purelux Dualrelay relay wiring harness is an innovative and easy solution for installing 1-4 additional lights in CAN-bus controlled vehicles. This relay wiring harness has an integrated Plug&Play type slot for the XBB relay, which together with the XBB OBD Dongle controller allows you to capture the excitation current for the additional light directly from the CAN bus. When used alone, the "problem" of the XBB relay is that it can only handle 180W powerful lights (e.g. 2 x 90W). However, many lights today are much more powerful, so they cannot be connected directly with the XBB. When the XBB relay is connected to the Dualrelay wiring harness, it sends the excitation directly to the wiring harness's own relay, which also allows you to connect more powerful additional lights to the vehicle without having to make any changes to the wiring harness. The wiring harness is available in versions with one or two outputs, so it allows you to connect 1-2 lights. In addition to the DTP-2 connectors, the wiring harness has one separate wire that is powered by the "Output2" channel of the XBB relay, so it can be used to turn on the parking light, for example: the white wire is connected directly to the parking light wire of the additional lights. The wiring harness is directly connected to 12V power. The max. current capacity of the 1-output wiring harness is 280W, the max. current capacity of the 2-output wiring harness is 480W (240W / connector), the max. current capacity of the 3-output wiring harness is 720W (240W / connector) and the max. current capacity of the 4-output wiring harness is 800W (200W / connector. Note! In addition to the wiring harness, you also need the XBB OBD Dongle & PowerUnit switching relay. On this page you can buy either just the wiring harness or a complete set, which includes the wiring harness, the aforementioned switching relay and the control unit. Select the appropriate option from the product options. Specifications Product: Relay wiring kit Purelux Dualrelay 12V, DTP-2 Purpose: Connecting additional car lights Operating voltage: 12V Max. power handling 360W (180W / connector) Connector: DTP-2 1-4 outputs Relay: 1-output: 40A 2 outputs: 60A 3-outputs: 80A 4 outputs: 80A Fuse: 1-output: 30A 2 outputs: 40A 3-outputs: 60A 4 outputs: 70A Dimensions: Length from light to relay: 225 cm Length from battery to relay: 54 cm White wire length: 200 cm Warranty: 12 months 1 output 2 outputs 3 outputs 4 outputs Max. current endurance 280W 480W (240W/connector) 720W (240W/connector) 800W (200W/connector) Wire thickness (from battery to relay) 12AWG / 2.94mm² 10AWG / 4.75mm² 8AWG / 8.10 mm² 8AWG / 8.10 mm² Wire thickness (from relay to light) 12AWG / 2.94mm² 14 AWG / 1.86 mm² 12AWG / 2.94mm² 14AWG / 1.86mm² Fuse 30A 40A 60A 70A Relay 40A 12V 60A 12V 80A 80A
