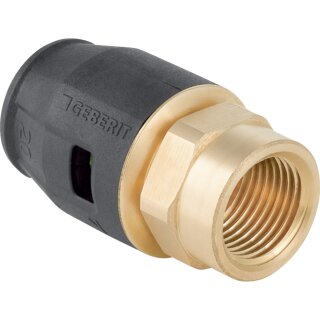

Geberit PushFit transition with
inner thread
Suitable for: Pushfit system pipe ML
The fittings can be processed without tools.
Uses
•for vehicle construction, shipbuilding, building technology and industry
•for drinking water cold+hot
•for cooling/heating water without antifreeze
•for cooling/heating water with antifreeze (e.g. engine cooling water)
•for operating/process water
•for rainwater with pH value > 6.0
•for sea water
•for compressed air
Characteristics
- O-ring made of EPDM
Technical characteristics
- Material: brass CW617N
- Shape: straight
- DN / nominal diameter: 12 / 15
- d, d / outer diameter (mm): 16 mm
- Rp / internal pipe thread tapered ("): 1/2"
- L / Length (cm): 5.8 cm
- Z / Z dimension (cm): 1.7 cm
- Length connection 1 (mm): 37 mm
- Length connection 2 (mm): 21 mm
