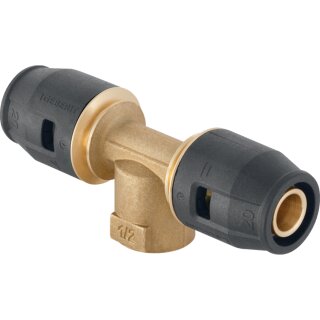

T-piece PushFit with internal thread 16 x 1/2" x 16
Suitable for: Pushfit system pipe ML
The fittings can be processed without tools.
Uses
•for vehicle construction, shipbuilding, building technology and industry
•for drinking water cold+hot
•for cooling/heating water without antifreeze
•for cooling/heating water with antifreeze (e.g. engine cooling water)
•for operating/process water
•for rainwater with pH value > 6.0
•for sea water
•for compressed air
Characteristics
- O-ring made of EPDM
Technical characteristics
- Material: brass CW617N
- Shape: T-piece
- DN / nominal diameter: 12 / 15 / 12
- d, d / outer diameter (mm): 16 mm
- Rp / internal pipe thread tapered ("): 1/2"
- d1, d / outer diameter (mm): 16 mm
- arc / angle (Gr): 90 Gr
- L / Length (cm): 11.4 cm
- L1 / Length (cm): 2.6cm
- Z / Z dimension (cm): 3.1 cm
- Z1 / Z dimension (cm): 1.1 cm
- Length connection 3 (mm): 57 mm
- Length connection 1 (mm): 57 mm
- Length connection 2 (mm): 26 mm
