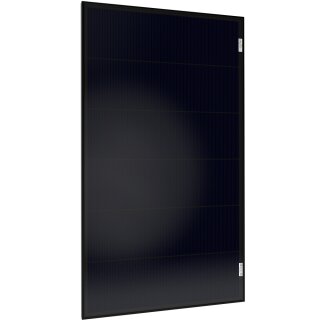

Offgridtec® olp 100w solar panel 12v shingle technology perc

Offgridtec® olp 100w solar panel 12v shingle technology perc

SKU: OT2177
Category: Solarmodule

110,55 €

incl. 19% VAT , plus

Low stock level

Description

The Offgridtec olp 100w (mpn 3-01-011070) is a powerful 12v solar module with innovative overlapping design wafer assembly and features dimensions that almost reach the range of high power solar modules. The shingle arrangement of the wafers ensures optimal current flow due to minimized power losses and significantly higher module efficiency due to better space utilization. The PERC technology used improves light absorption and increases the power yield.

Unique selling points of the olp series of Offgridtec

Unique module design with overlapping wafer arrangement (overlapping design) ensures very high module efficiency through better area utilization and reduced power losses due to line resistances.
Modern, homogeneous appearance without visible conductor tracks.
Innovative PERC technology ensures improved absorption at longer wavelengths, e.g. at flat irradiation angles (early morning and evening) or in cloudy conditions
No hotspot hazard
Less loss in case of partial shading
Thanks to finishing according to overlapping design, the module has a footprint of just 988 x 560 x 30mm at a rated power of 100w. The cell efficiency is over 23%.

Innovative PERC technology

The PERC technology (Passivated Emitter Rear Cell) in the Offgridtec olp solar modules ensures a higher efficiency of the solar cells with its key technology. A dielectric layer is created on the back of the cell between the conventional aluminum metallization and the silicon wafer layer, which is provided with tiny holes by a laser. This dielectric layer reflects light, which penetrates to the back side without generating charge carriers, into the solar cell. The reflection gives the photons a "second chance" to generate electricity. In addition to higher efficiency at different wavelengths and the increased likelihood that electrons will contribute to power, PERC technology contributes to lower system costs and an increase in area energy yield.

Technical Data

Generator output: 100Wp
System voltage: 12V/DC
Module voltage (Vmp): 18.7V
Max. Current (Imp): 5.53A
Open-circuit voltage (Voc): 22.1V
Short-circuit current (Isc): 5.67A
Max. System voltage: 1000V/DC
Cell type: monocrystalline PERC
Ambient temperature: -40°C to +85°C
Cell efficiency: >23
Dimensions: 988 x 560 x 30mm
Weight: 6.09 kg

Scope of delivery:

3-01-011070 Offgridtec® olp 100w 12v PERC overlapping solar panel 12v shingle technology

Item weight:	6,00 kg
Dimensions ( Length × Width × Height ):	98,80 × 56,00 × 3,00 cm
