Description
Characteristics
Track widening per axle [mm]
60 mm
Thickness [mm]
30 mm
Number of Holes
5
Bolt Hole Circle Ø [mm]
112 mm
Centering Diameter [mm]
57 mm
Colour
Silver
Registration Type
with TÜV® certificate
Follow installation instructions
Additional information
General Information
Please note additional information and vehicle-specific
technical notes!

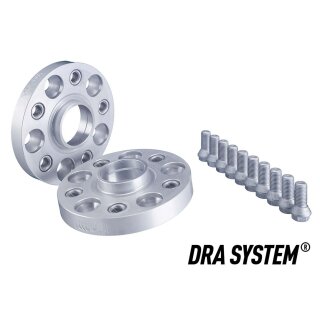

DRA = The wheel spacer should be fitted to the axial hub
using the fastening bolts provided. The wheels should then
be fitted using the existing wheel bolts provided with the
wheels. All fixing- accessories are included!
The original wheel screw which sticks out of the inner
side of the wheel needs to have a permanent thread and
it´s
length has to be smaller than the thickness of the spacer.
Teilegutachten
Distanzringe Typ 1055571, 2055571, 2455571, 3055571, 4055571, 5055571, 6055571
